Author a formula with physical units sub-type

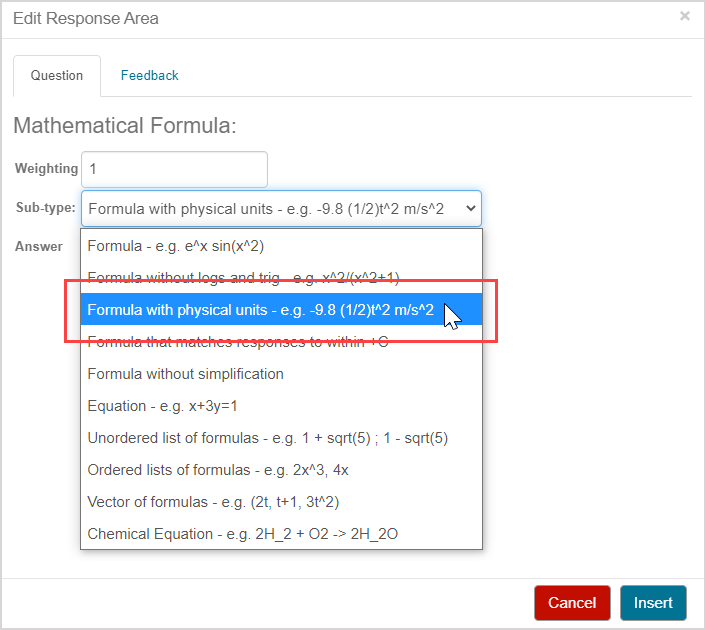

This sub-type is authored by selecting the Formula with physical units option from the Sub-type drop-down list during mathematical formula question authoring.
Examples of accepted syntax for defining the Answer field value for this sub-type are:
- 6 mg
- 2*t m/s
- sin(x) m/s^2
- (3*t^2+1) km/hr
The formula with physical units sub-type Answer field:
- Accepts a combination of numeric quantities, algebraic formulas, unit dimensions, and physical units.
- Is recommended when the student is required to specify the physical units for their response.
- Recognizes response equivalence, and only recognizes physical unit equivalents as equivalent responses if the units within the student response are recognized by Möbius (check out Author a question with physical units).
NOTE: The formula with physical units question is one of the ten sub-types of the mathematical formula question. Check out Choose a mathematical formula question sub-type for an explanation of each of the ten available mathematical formula question sub-types.
TIP: Check out Author a mathematical formula question for full question authoring instructions.
TIP: If the numeric component of your correct response is composed of several numbers and/or variables, be sure to wrap this numeric portion of the correct response in brackets for it to be calculated and separated from the units component (Example — ($b*$a-$b) mL).
Example of this sub-type

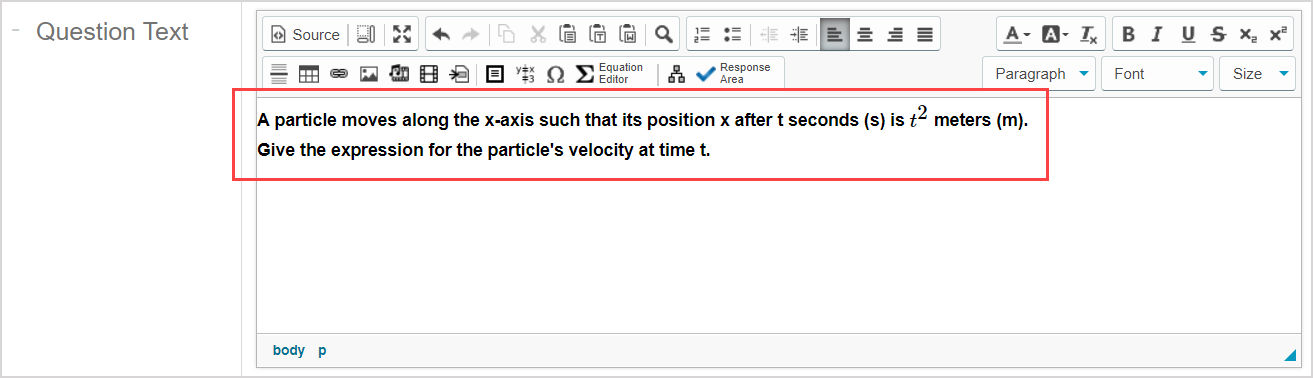

- Question statement:
A particle moves along the x-axis such that its position x after t seconds (s) is t2 meters (m).
Give the expression for the particle's velocity at time t.
- Answer field syntax:
2*t m/s
Example of this sub-type with an algorithm

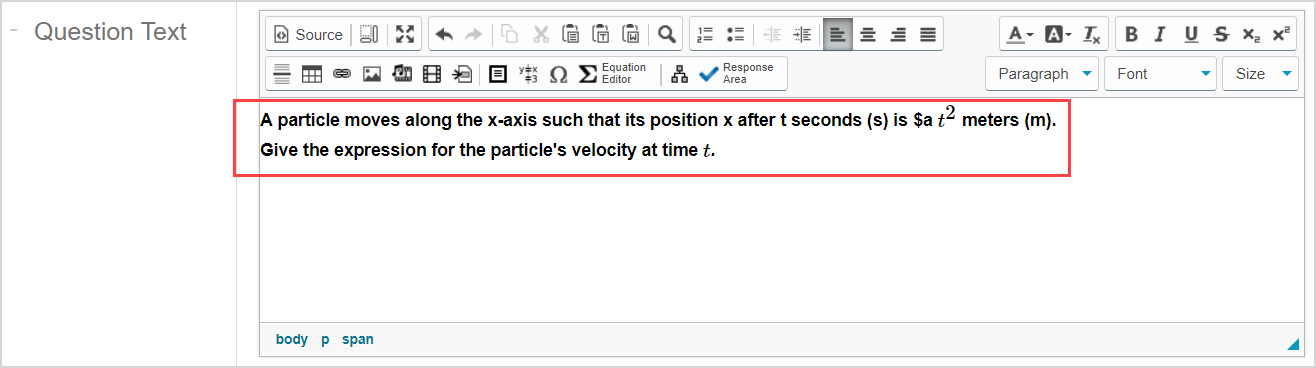

- Question statement:
A particle moves along the x-axis such that its position x after t seconds (s) is $a t2 meters (m).
Give the expression for the particle's velocity at time t.
- Algorithm:
$a=2+rint(5);
$b=2*$a;

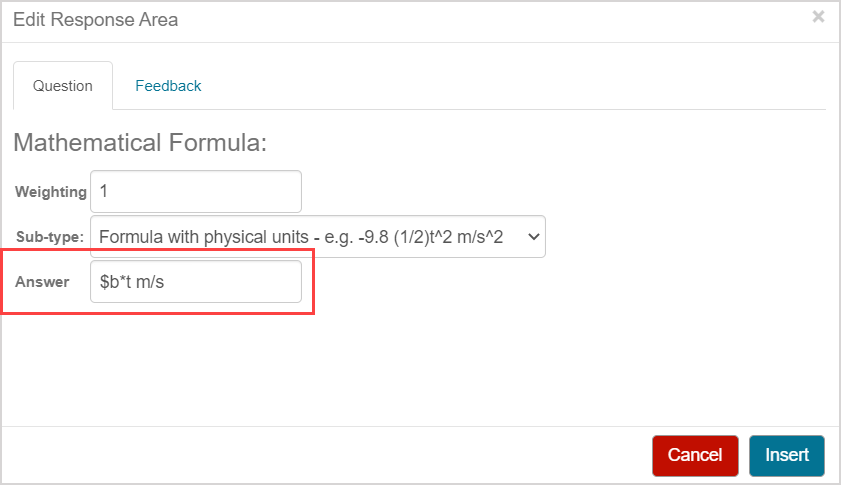

- Answer field syntax:
$b*t m/s
NOTE: The dollar sign ($) character can only be used in mathematical formula questions when it's a part of a variable name. Be sure to define algorithmic variables in the Algorithm pane in order to use them in the Answer field.
